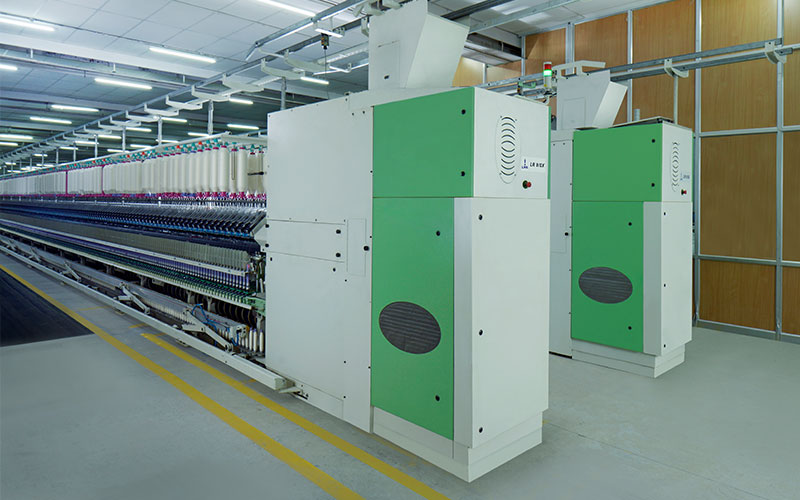

Ring Frame LR9 SX/SXL Series

TMD

This series of LMW ring frames are designed with innovated technology for versatility in product. All Superlative features of this series make it as a Gen-Next machine. All parameters including draft are changeable by simple screen touches and also ability to start quadrant wise make the machine user friendly. The technology ensures the Spinning of yarn with value addition for Profitability in maximum level.

Features

  • LR9SX up to 1824 spindles helps in less Capex
  • Credo+ Rings ensure better performance
  • HLLD spindles with less Vibration & Noise
  • Polymer Jockey Pulley with life time grease ensures less maintenance
  • Inbuilt Energy saver with IE4 main motor,Inverter controlled IE3 suction motor & Inclined suction tube arrangement
  • LMW’s unique T-Flex, 4Q-2M drive concept
  • Inbuilt YBS, RSM for enhancing the performance

Flexibility

  • Slubs like Vario slub,Negative slub,Slub on slub,Short slub,Injection slub can be spun
  • Fancy yarns like Multi Twist, Multi Count, SIRO can be spun
  • Four Quadrant drive system for easier restarting of machines after material changing
  • Ready to retrofit of Compact system
  • Spindle pitch 70mm & 75mm available with lifts from 160mm to 210mm

Automation

  • Rapid doff system (<110sec doff time)
  • Rogue spindles, Slip spindles, Idle spindles can be identified through YBS &RSM system
  • Machine ready to merge with LMW Spin Connect system with an unique feature called Recipe Management
  • Power consumption can be monitored through display
  • Dedicated software to preview Slub pattern
