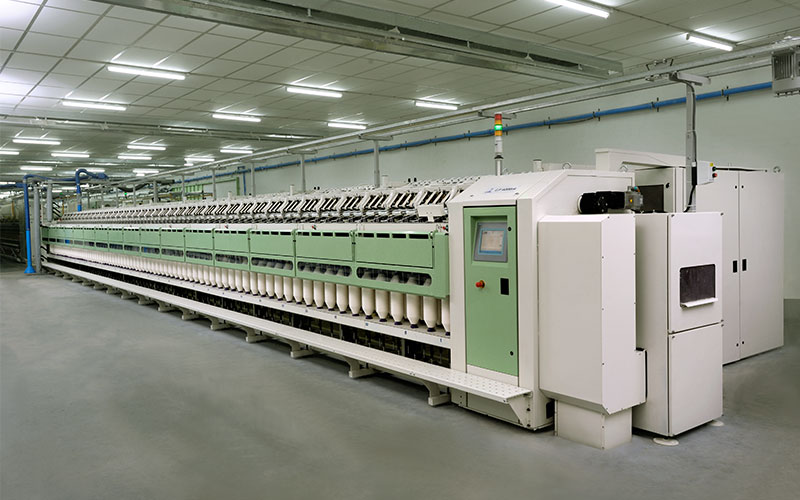

Speed Frame LF4200

TMD

All the drives of Bobbin,Flyer,Bobbin trough and Drafting are driven by Servo motors.The machine can be easily clubbed with Roving Transportation System by installing bobbin converters in any of the sides of the machine.Automatic Tension Control system ensures the uniform and consistent tension of the roving and thus delivers perfect roving packages with Supreme quality.

Features

  • Upto 280 spindles for both cotton & Man Made Fibres
  • Detachable flyer spindle for removing bobbin in midway
  • Dual & split drive concept
  • CQ duct for effective and consistent suction through out the machine

Flexibility

  • Provision to drive sectional segments(40 spindles)
  • Ready to doffer retro-fitment in future
  • Special Bobbin Tilting mechanism for ease of operation
  • 3/3 & 4/4 drafting system option available, In 4/4 drafting system both 2nd roll apron drive and 3rd roll apron drive option available
  • Flyer size of both 6”X 16” & 7”X 16” option available
  • 4 Row/5 Row/6 Row Hexagonal creel available
  • Availability of Pneumatic and Spring loaded drafting system
  • Both pneumatic and spring loaded drafting system option available

Automation

  • Rapid doff system with lesser doff time ensures more productivity
  • Bobbin Exchanger can be fixed on either end of the sides
  • Provision to connect with Roving Transportation system
  • Draft,Speed,TPI change through display
  • Ready to merge with LMW Spin Connect system
